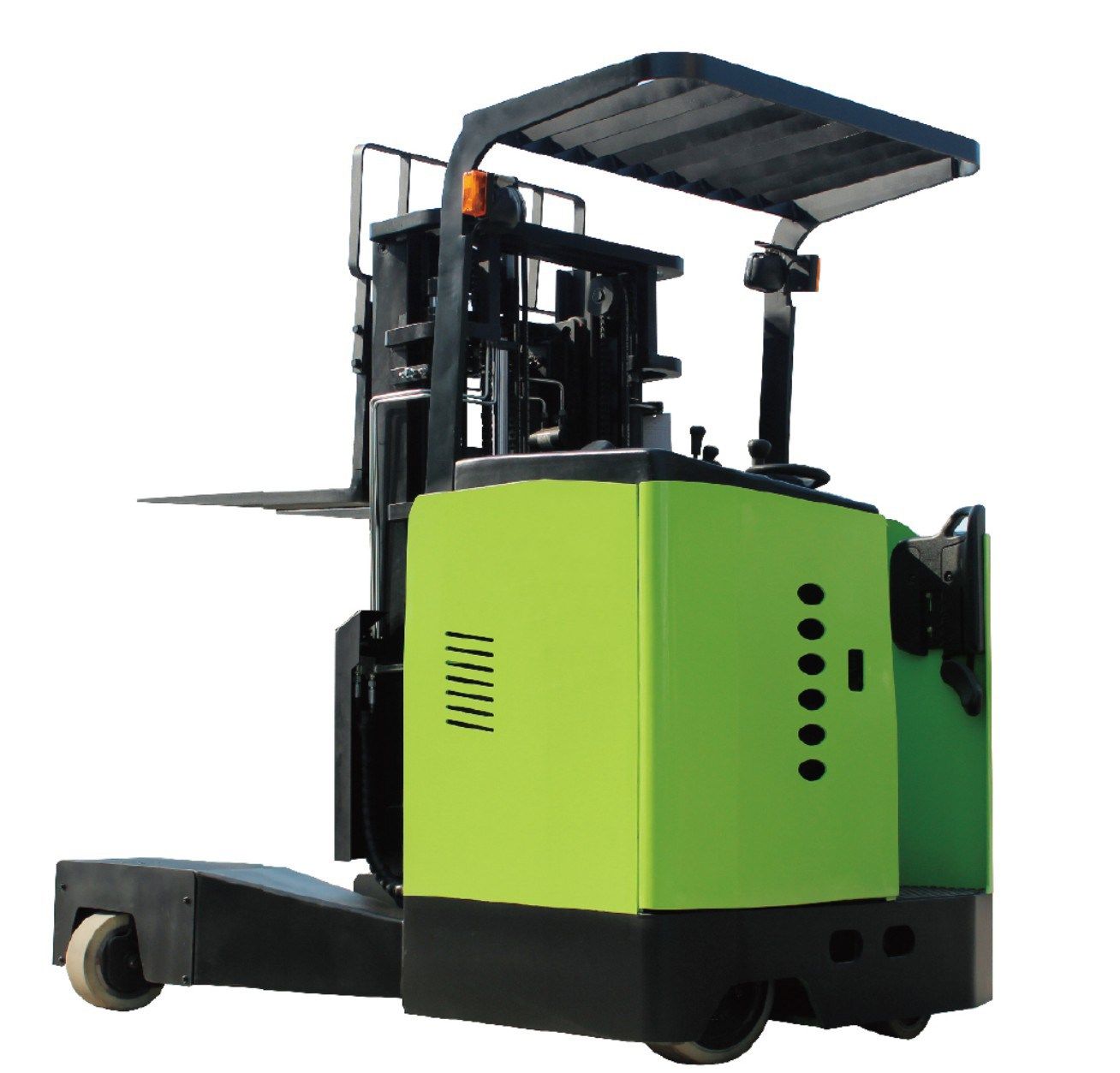

Electric Four Direction Reach Forklift
Home - Products - Warehouse Equipment - Electric Four Direction Reach Forklift - Electric Four Direction Reach Forklift
1. Four-directional driving, used for narrow aisle sacking operation, saving storage area greatly, switching fast between straight and side lines, simple operation quickly change direction, high efficiency and few failure rate.
2. Free maintenance of AC drive system, making the whole vehicle more responsive and accurate.
3. Imported controller, accurate control, simple setting of electrical control parameters, powerful function and low failure rate.
4. Stable operation, especially used for long shape material handling.
5. Real-time display of driving wheel angle makes it easy to fine turn the direction in narrow aisle, very safe, reasonable and accurate identification.
6. Large capacity special power battery with strong power, safe and reliable, convenient charging, long cycle life and low maintenance cost.
| Name | Electric Four Direction Reach Forklift (EFRF) | ||
| Operation type | Standing Posture | ||
| Model No. | Unit | VG-EFRF15-45 | VG-EFRF20-45 |
| Power tye | Full-electric | ||
| Capacity | Kg | 1500 | 2000 |
| Max. lifting height | H2(mm) | 4500 | 4500 |
| Load center | C(mm) | 500 | 500 |
| Wheel type | Pu solid tire | ||
| Fork dimensions | mm | 1070*100*35 | 1070*100*35 |
| Fork spread | mm | 260-720 | 260-720 |
| Overall length including fork | L(mm) | 3150/2550 | 3250/2550 |
| Overall width | S(mm) | 1690 | 1690 |
| Mast lowered height | H1(mm) | 2100 | 2100 |
| Max.height when fork is lifting | H(mm) | 5416 | 5416 |
| Turning radius | Wa(mm) | 1905 | 2000 |
| Side channel width(1000*1000pallet) | 2900 | 2900 | |
| The height of overhead guards | mm | 2280 | 2280 |
| Min. ground clearance | mm | 80 | 80 |
| Max. travel speed | Km/h | 7/8 | 7/8 |
| Lifting speed | mm/s | 120/270 | 120/270 |
| Grade ability | % | ≤10 | ≤10 |
| Total Weight | Kg | 3400 | 3500 |
| Driving wheel | mm | φ382*142 | φ382*142 |
| Front wheel | mm | φ267*114 | φ267*114 |
| Balance wheel | mm | φ180*76 | φ180*76 |
| Battery capacity | V/Ah | 48/300 | 48/400 |
| Charger-intelligent | V/A | 48/40 | 48/50 |
| Driving motor | Kw | 6.5 | 6.5 |
| Lifting motor | Kw | 7.5 | 7.5 |
| Drive controlling type | 6.5(AC) | 6.5(AC) | |
| Walking adjustable type | Holzer type accelerator | ||
| Walkie brake | Electromagnetic | ||
| Parking break | Electromagnetic | ||
