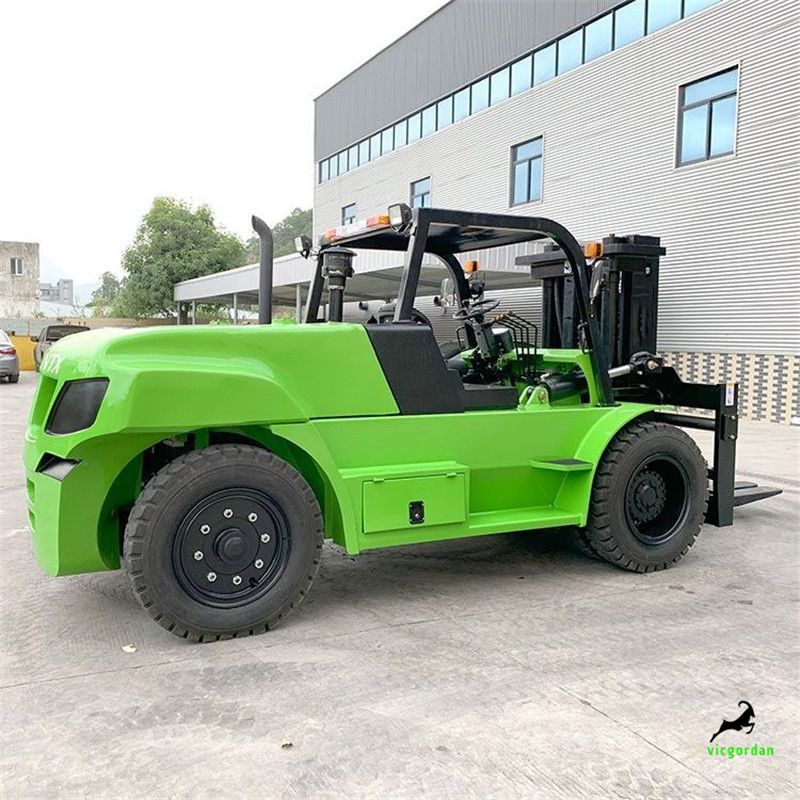

10 ton diesel forklift working for inside of container
Home - Products - Port Machinery - Heavy Forklift Truck - 10 ton diesel forklift working for inside of container
Engine: YJ6J125-T300 or 6BT5.9-C130
Weight: 13,000 kgs
Wheel base: 2800mm
Rated load: 10,000 kgs
Load center: 600mm
Duplex 2.3m full free mast
Open cab
Fork length: 1520 mm
Overall Dimension:
5830 * 1940 *2220 mm
10 ton diesel forklift for working inside of container
| 项目Item | 项目内容 | 单位 | 参数表 Technical Parameter |
| CPCD100(container） | |||
| 特性 Features | 起重量/载荷 Rated Load | Kg | 10000 |
| 载荷中心距Load Center | mm | 600 | |
| 轴距Wheelbase | mm | 2800 | |
| 重量 Weight | 自重 Weight | kg | 13000 |
| 车轮底盘 Chassis | 轮胎规格：前 Tire Specs:Front | 8.25-20-18PR | |
| 轮胎规格：后 Tire Specs:Rear | 8.25-20-18PR | ||
| 车轮，数量前/后（X-驱动轮） Tires Qty,front/rear(X-dreve wheels) | 4/2 | ||
| 轮距：前 Wheel tread:Front | mm | 1430 | |
| 轮距：后 Wheel tread:Rear | mm | 1670 | |
| 基本尺寸 Dimensions | 门架/货叉架前/后倾角 Mast/carriage tilt angle(front/rear) | Degree(°) | 6/12 |
| 门架回缩时高度 Mast height(fork lowering) | mm | 2220 | |
| 标准起升高度 Mast lifting height | mm | 2300 | |
| 作业时最大高度 Max.height | mm | 3460 | |
| 护顶架高度（驾驶室高度）height to head guard(height to cab) | mm | 2210 | |
| 总长（含货叉长度）Overall height（with forks) | mm | 5830 | |
| 货叉垂直前表面支至车辆后端距离 Fork front verticaal sueface to the rear end of the vehicle | mm | 4310 | |
| 总宽 Overall width | mm | 1940 | |
| 货叉尺寸 Fork dimension | mm | 1520*150*80 | |
| 货叉架宽度 Fork carriage width | mm | 1900 | |
| 门架下最小的离地间隙 满载 Mast min ground(with load) | mm | 250 | |
| 轴距中心最小离地间隙 满载 Wheelbase center min ground(with load) | mm | 300 | |
| 最小转弯半径 Min.turning Radius | mm | 4150 | |
| 运行速度（满载/无载）Travel speed(with load/without load) | km/h | 23/28 | |
| 功能参数Performance | 最大起升速度（满载/无载）Max.lifting speed(with load/without load) | mm/s | 220/280 |
| 牵引力 tractionn | KN | 80 | |
| 爬坡度（满载/无载）gradeability(with load/without load) | % | 20/22 | |
| 行车制动 Driving brake | 盘式Hydraulic clamp disc | ||
| 内燃机 Engine | 内燃机生产厂家/型号 Engine brand/model | 可选1 Optional one | 玉柴 Yuchai Engine |
| emission II 国三 | YJ6J125-T300 | ||
| emission II | |||
| emission III | |||
| 输出功率 Rated Output | 97(Kw) | ||
| 气缸数目 Cylinder No | 6 | ||
| 其他 Others | 变速箱档位数（前/后）Transmission gears(Front/rear) | 2/2 |
