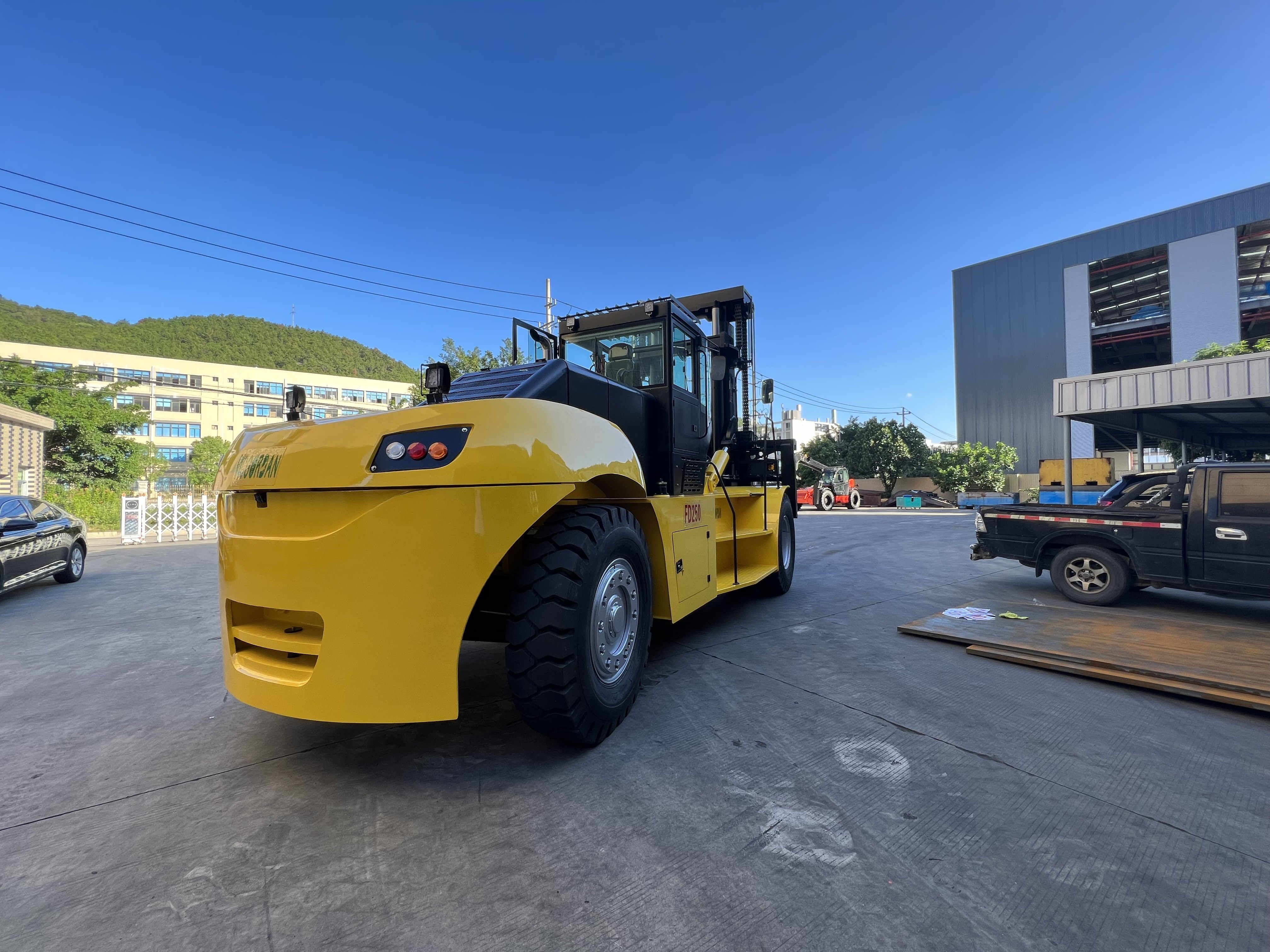

25 ton forklift

Engine: WD10G220E21 or cummins engine CTA8.3-C215

Weight: 35,000 kgs

Wheel base: 4400 mm

Rated load: 20,000 kgs

Rated load: 25,000 kgs

Load center : 1200 mm

Duplex 4m mast

Enclosed cab with A/C

Fork positioner with side shift

Fork length: 2400 mm

Overall Dimension:

8950 * 3060 *3970 mm

forklift for port

forklift for container yard

forklift for logistic company

heavyforklifttruck

Heavy Forklift Trucks 25 ton

When your business requires a solution that is ready for the heaviest, most challenging of loads, our range of heavy-duty forklifts offers you everything you need. These powerful and efficient trucks deliver for our customers around the world every day, by being reliable, flexible, agile and offering a superior driver experience.

Inquire Now Next Product

Features
Specifications

Drive Axle

Made in China, Vicgordan-customized, heavy-duty master reducer, pneumatic brake system.

Gear-box

zhongnan gear-box, multi-stage torque converter, big converter ratio, wide range of auto-adjust speed; stable and smooth shift, 2 stage forward and 1 stage

backward, easy operation and maintenance.

Steering System

Vicgordan-made crosswise steering axle; The steering with load sensor and adjustable steering device make the operation easily.

Hydraulic System

Multi-hydraulic valve make it easy to operate. Load sensor hydraulic system, dual pumps supply, dynamic load sensor priority valve, reduce power consumption,

lower the hydraulic oil temperature.

Chassis

heavyforklifttruck

The combined chassis structure provide the high intensity and low weight feature, increase the cooling area of the oil tank greatly.

Power System

The customer can choose Cummins turbo 6 cylinder engine or Yuchai engine which according with the GB3 Emission Regulation, high performance, low oil consumption, low speed with high torque, great capacity cooler.

Brake System

Adopt auto parts, air braking system improves the comfort also reduce the pollution cause by oil leakage.

Lifting Assembly

Wide view mast provide great operator visibility; Dual limited speed valves increase the safety; Distance between forks can be adjusted manually is the standard

feature, customer can choose fork positioner or sideshifter.

Overhead Guard

Full suspension overhead guard connected the chassis with 4 pivots using the rubber;Tilted structure is easy for maintenance; Smaller column and steering wheel

increase the operator space.

Electrical System

The instrument show all information about the forklift;it will sound alert when low brake pressure or non-lease parking brake.

Item		Unit	details
Item		Unit	VGF-250
Features	Rated Load	Kg	25000
	Load Center	mm	1250
	Wheelbase	mm	4400
	Weight	kg	33500
Chassis	Tire Specs:Front		14.00-24
	Tire Specs:Rear		14.00-24
	Tires Qty,front/rear(X-drive wheels)		4 2
	Wheel tread:Front	mm	2200
	Wheel tread:Rear	mm	2130
Dimensions	Mast/carriage tilt angle(front/rear)	Degree(°)	6 12
	Mast height(fork lowering)	mm	3970
	Mast lifting height	mm	4000
	Max.height	mm	5940
	height to head guard(height to cab)	mm	3440
	Overall height（with forks)	mm	8950
	Fork front vertical surface to the rear end of the vehicle	mm	6550
	Overall width	mm	3060
	Fork dimension	mm	2400300100
	Fork carriage width	mm	2800
	Mast min ground(with load)	mm	350
	Wheelbase center min ground(with load)	mm	420
	Min.turning Radius	mm	6160
	Travel speed(with load/without load)	km/h	25/30
Performance	Max.lifting speed(with load/without load)	mm/s	260/270
	traction	KN	160
	Grade ability(with load/without load)	%	20/22
	Driving brake		Hydraulic clamp disc
Engine	brand/model	Optional
		emission II	WP10G220E343 9.726L162kW2000r/min
		Optional
		emission III	QSC8.3-C215 8.3L160kW2200r/min
		emission II	6CTA8.3-C215 8.3L160kW2200r/min
		Rated Output	162(Kw)
		Cylinder No	6
other	Transmission gears(Front/rear)		2 1
