1.8 Ton LPG and Gasoline Forklift

Inquire Now Next Product

Features
Specifications

1.8 ton forklift with Japan engine or china engine

with 2 stage 3 m mast

LED light

pneumatic tire or solid tire

toyouta seat

Cascade fork

side shift

option:

Full free mast

3 stage mast

1200mm fork

General	1	Manufacturer		BeiJing Vicgordan Industrial Co., Ltd
	2	Model		FL18	FGL15	FG18
	3	Power Type		LPG	Gasoline/LPG	Gasoline
	4	Rated Load Capacity	Q(kg)	1800	1800	1800
	5	Load Centre	C(mm)	500	500	500
Characteristic & Dimension	6	Rated Lift Height	H3(mm)	3000	3000	3000
	7	Free Lift Height	H2(mm)	100	100	100
	8	Fork Size (L×W×T)	mm	1070×120×40	1070×120×40	1070×120×40
	9	Mast Tilt Angle (F/R, α°/β°)	deg	6°/12°	6°/12°	6°/12°
	10	Fork Overhang (Wheel Center to Fork Face)	X1(mm)	409	409	409
	11	Rear Overhang	X2(mm)	470	470	470
	12	Ground Clearance (Bottom of Mast)	H7(mm)	110	110	110
	13	Length to Face of Fork (Without Fork)	L1(mm)	2285	2285	2285
	14	Overall Width	B1(mm)	1082	1082	1082
	15	Mast Lowered Height	H1(mm)	2025	2025	2025
	16	Mast Extended Height (With Backrest)	H4(mm)	4055	4055	4055
	17	Overhead Guard Height	H5(mm)	2160	2160	2160
	18	Turning Radius (Outside)	Wa(mm)	2100	2100	2100
	19	Min.Aisle width for pallets	mm	3700	3700	3700
Performance	20	Travel Speed (No Load)	km/h	14.5	14.5	14.5
	21	Lifting Speed (No Load/Full Load)	mm/sec	550/500	550/500	550/500
	22	Lowering Speed (No Load/Full Load)	mm/sec	400/530	400/530	400/530
	23	Max.Drawbar Pull (Full Load/No Load)	KN	17(14.5)	20.5(17.5)	21(18)
	24	Max.Gradeability (Full Load)	%	20	20	20
Chassis	25	Tyre (Front x 2)	mm	6.50-10-10PR	6.50-10-10PR	6.50-10-10PR
	26	Tyre (Rear x 2)	mm	5.00-8-10PR	5.00-8-10PR	5.00-8-10PR
	27	Front Tread	B2(mm)	890	890	890
	28	Rear Tread	B3(mm)	920	920	920
	29	Wheelbase	Y(mm)	1410	1410	1410
Weight	30	Total Weight	kg	2990	2990	2990
	31	Front Axle Weight Distribution (Full Load)	kg	4120	4120	4120
	32	Rear Axle Weight Distribution (Full Load)	kg	720	720	720
	33	Front Axle Weight Distribution (No Load)	kg	1170	1170	1170
	34	Rear Axle Weight Distribution (No Load)	kg	1820	1820	1820
Power & Transmission	35	Battery	V/Ah	12/90	12/90	12/90
	36	Engine Model		K21	K21	K21
	37	Engine Manufacturer		NISSAN	NISSAN	NISSAN
	38	Rated Output / r.p.m.	kw	31.5/2300	31.5/2300	31.5/2300
	39	Rated Torque / r.p.m.	N·m	144/1600	144/1600	144/1600
	40	No.of Cylinder		4	4	4
	41	Bore x Stroke	mm	89/83	89/83	89/83
	42	Displacement	cc	2065	2065	2065

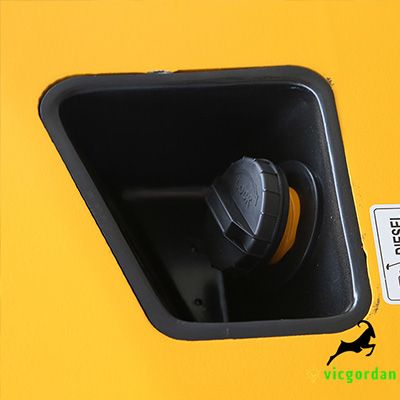

	43	Fuel Tank Capacity	L	50	50	50
	44	Transmission Type		Powershift & Manual	Powershift &Manual	Powershift & Manual
	45	Transmission Stage (FWD/RVS)		1/1(2/2)	1/1(2/2)	1/1(2/2)
	46	Operating Pressure (For Attachments)	Mpa	14.5	14.5	14.5
