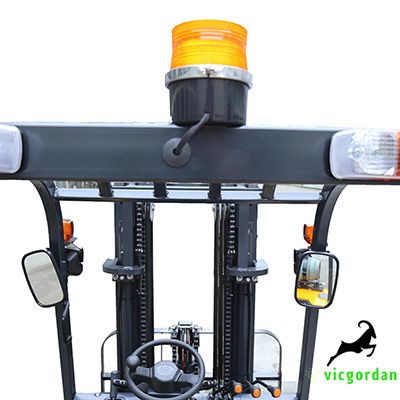

3.5 Ton LPG and Gasoline Forklift

Inquire Now Next Product

Features
Specifications

3.5 ton forklift with Japan engine or china engine

with 2 stage 3 m mast

LED light

pneumatic tire or solid tire

toyouta seat

Cascade fork

side shift

option:

Full free mast

3 stage mast

1200mm fork

General	1	Manufacturer		BeiJing VICGORDAN Industrial Co., Ltd
	2	Model		FL35	FG35	FL35		FGL35
	3	Power Type		LPG	Gasoline	LPG		Gasoline/LPG
	4	Rated Load Capacity	Q(kg)	3500	3500	3500		3500
	5	Load Centre	C(mm)	500	500	500		500
Characteristic & Dimension	6	Rated Lift Height	H3(mm)	3000	3000	3000		3000
	7	Free Lift Height	H2(mm)	100	100	100		100
	8	Fork Size (L×W×T)	mm	1070×125×50	1070×125×50		1070×125×50		1070×125×50
	9	Mast Tilt Angle (F/R, α°/β°)	deg	6°/12°	6°/12°	6°/12°		6°/12°
	10	Fork Overhang (Wheel Center to Fork Face)	X1(mm)	484	484	484		484
	11	Rear Overhang	X2(mm)	635	635	635		635
	12	Ground Clearance (Bottom of Mast)	H7(mm)	145	145	145		145
	13	Length to Face of Fork (Without Fork)	L1(mm)	2775	2775	2775		2775
	14	Overall Width	B1(mm)	1225	1225	1225		1225
	15	Mast Lowered Height	H1(mm)	2070	2070	2070		2070
	16	Mast Extended Height (With Backrest)	H4(mm)	4070	4070	4070		4070
	17	Overhead Guard Height	H5(mm)	2235	2235	2235		2235
	18	Turning Radius (Outside)	Wa(mm)	2500	2500	2500		2500
	19	Min.Aisle width for pallets	Ast(mm)	4255	4255	4255		4255
Performance	20	Travel Speed (No Load)	km/h	19	19	19		19
	21	Lifting Speed (No Load/Full Load)	mm/sec	470/400	470/400	470/400		470/400
	22	Lowering Speed (No Load/Full Load)	mm/sec	350/470	350/470	350/470		350/470
	23	Max.Drawbar Pull (Full Load/No Load)	KN	26(21)	26(21)	26(21)		26(21)
	24	Max.Gradeability (Full Load)	%	20	20	20		20
Chassis	25	Tyre (Front x 2)	mm	28×9-15-12PR	28×9-15-12PR	28×9-15-12PR		28×9-15-12PR
	26	Tyre (Rear x 2)	mm	6.50-10-10PR	6.50-10-10PR	6.50-10-10PR		6.50-10-10PR
	27	Front Tread	B2(mm)	1000	1000	1000		1000
	28	Rear Tread	B3(mm)	980	980	980		980
	29	Wheelbase	Y(mm)	1700	1700	1700		1700
Weight	30	Total Weight	kg	4775	4775	4775		4775
	31	Front Axle Weight Distribution (Full Load)	kg	6997	6997	6997		6997
	32	Rear Axle Weight Distribution (Full Load)	kg	777	777	777		777
	33	Front Axle Weight Distribution (No Load)	kg	1910	1910	1910		1910
	34	Rear Axle Weight Distribution (No Load)	kg	2865	2865	2865		2865
Power & Transmission	35	Battery	V/Ah	12/90	12/90	12/90		12/90
	36	Engine Model		PSI2.4L	K25	K25		K25
	37	Engine Manufacturer		Mitsubishi	NISSAN	NISSAN		NISSAN
	38	Rated Output / r.p.m.	kw	46/2700	44.2/2500	44.2/2500		44.2/2500
	39	Rated Torque / r.p.m.	N·m	168 /1600	186.2/1600	186.2/1600		186.2/1600
	40	No.of Cylinder		4	4	4		4
	41	Bore x Stroke	mm	86.50X100.00	92×93	92×93		92×93
	42	Displacement	cc	2351	2472	2472		2472
	43	Fuel Tank Capacity	L	50	50	50		50
	44	Transmission Type		Powershift ( Manual)	Powershift ( Manual)	Powershift ( Manual)		Powershift (Manual)
	45	Transmission Stage (FWD/RVS)		1/1(2/2)	1/1(2/2)	1/1(2/2)		1/1(2/2)
	46	Operating Pressure (For Attachments)	Mpa	17.5	17.5	17.5		17.5
