TC diesel forklift 2-4 T
Home - Products - Forklift - TC forklift - TC diesel forklift 2-4 T
Adhering to the concept of continuous improvement and pursuit of high-quality products, we have made a lot of improvements in the reliability, control performance and appearance of this series of products, to ensure that the comprehensive performance of the products is at the high-end level of the industry, far ahead of other mainstream domestic brand products and close to the level of Japan.
The most reasonable system matching after repeated verification
Selection of domestic first-line brands or imported brands parts
After 1000 hours of continuous enhancement test
2 ton forklift with Japan engine or china engine
2.5 ton forklift with Japan engine or china engine
3 ton forklift with Japan engine or china engine
3.5 ton forklift with Japan engine or china engine
4 ton forklift with Japan engine or china engine
with 2 stage 3 m mast
LED light

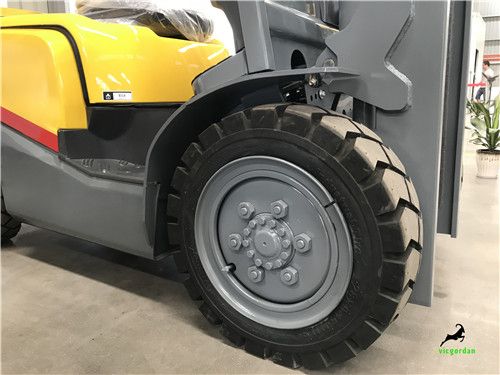

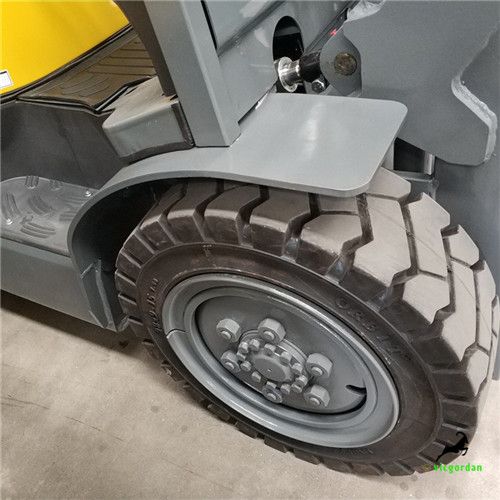

pneumatic tire or solid tire
toyouta seat
Cascade fork
side shift
option:
Full free mast
3 stage mast
| Model | UNIT | FD20 | FD25 | FD30 | FD35 | FD40 | ||||||
| Performance | Power Unit | Diesel | Diesel | Diesel | Diesel | Diesel | ||||||
| Operator Type | Driver/seat | Driver/seat | Driver/seat | Driver/seat | Driver/seat | |||||||
| Transmission Box Type | Electronic hydraulic transmisson | |||||||||||
| Rated Capacity | kg | 2000 | 2500 | 3000 | 3500 | 4000 | ||||||
| Load Center | mm | 500 | 500 | 500 | 500 | 500 | ||||||
| Max. Lifting Height | mm | 3000 | 3000 | 3000 | 3000 | 3000 | ||||||
| Mast Tilting Angle (Fwd/Bwd) | deg | 6/12 | 6/12 | 6/12 | 6/12 | 6/12 | ||||||
| Free Lifting Height | mm | 150 | 150 | 150 | 150 | 150 | ||||||
| Turning Radius | mm | 2170 | 2240 | 2400 | 2400 | 2400 | ||||||
| Lifting Speed (Loaded/Unloaded) | mm/s | 650/710 | 650/710 | 630/690 | 630/690 | 630/690 | ||||||
| Lowering Speed (Loaded/Unloaded) | mm/s | 480/450 | 480/450 | 480/450 | 480/450 | 480/450 | ||||||
| Travelling Speed (Loaded/Unloaded) | km/h | 17/19 | 17/19 | 19/20 | 19/20 | 19/20 | ||||||
| Max. Gradeability (Loaded) | % | 21 | 21 | 21 | 21 | 21 | ||||||
| Max. Drawbar Pull (Loaded) | n | 18 | 18 | 18 | 18 | 18 | ||||||
| Dimensions | Overall length (without fork) | mm | 2605 | 2605 | 2705 | 2760 | 2820 | |||||
| Overall Width | mm | 1150 | 1150 | 1240 | 1240 | 1300 | ||||||
| Overhead Guard Height | mm | 2090 | 2090 | 2100 | 2100 | 2100 | ||||||
| Fork Size (LxWxT) | mm | 1220×122×40 | 1220×122×40 | 1220×125×45 | 1220×125×50 | 1220×125×50 | ||||||
| Mast Height (Fork lowered) | mm | 2040 | 2040 | 2140 | 2140 | 2140 | ||||||
| Truck Weight | kg | 3380 | 3680 | 4380 | 4680 | 4800 | ||||||
| Tyre Size (Front/Rear) | 7.00-12-12PR/6.0-9-10PR | 28×9-15-14PR/6.5-10-10PR | ||||||||||
| Fuel Tank Capacity | L | 70 | 70 | 70 | 70 | 70 | ||||||
| Engine | Brand | ISUZU | XINCHAI | ISUZU | XINCHAI | ISUZU | XINCHAI | ISUZU | XINCHAI | ISUZU | XINCHAI | |
| Model | C240 | C490 | C240 | C490 | C240 | C490 | 4JG2 | C495 | 4JG2 | C495 | ||
| Rated Power | kw/rpm | 35.4/2500 | 40/2650 | 35.4/2500 | 40/2650 | 35.4/2500 | 40/2650 | 44.8/2450 | 42/2650 | 44.8/2450 | 42/2650 | |
| Rated torque | n-m/rpm | 137.7/1800 | 160/1600 | 137.7/1800 | 160/1600 | 137.7/1800 | 160/1600 | 186/1800 | 174/1600 | 186/1800 | 174/1600 | |
| Number of cylinder | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||
| Displacement | 2.36 | 2.67 | 2.36 | 2.67 | 2.36 | 2.67 | 3.06 | 2.8 | 3.06 | 2.8 | ||
